Staniot 433MHz Vibration Sensor & SOS Smart Home Security Alarm – Tuya Compatible Staniot 433MHz Vibration Sensor & SOS Smart Home Security Alarm – Tuya Compatible

$40.95 $34.40
Availability: 200 In Stock
SPECIFICATIONSBrand Name: staniotCertification: CE,RoHSChoice: yesCompatible: Staniot Home Security SystemEasy installation: It fits on all types of doors and windowsFeature 1: Door open alarmFeature 2: Vibration detectionFeature 3: SOS buttonHign-concerned Chemical:...
SPECIFICATIONSBrand Name: staniotCertification: CE,RoHSChoice: yesCompatible: Staniot Home Security SystemEasy installation: It fits on all types of doors and windowsFeature 1: Door open alarmFeature 2: Vibration detectionFeature 3: SOS buttonHign-concerned Chemical:...
Add to wishlist
Add to compare
Size Guide Size Guide
SKU: 14:29#2 in 1 Door Sensor  Home & Office Security,Vibration Sensors
Description Description

SPECIFICATIONS

Brand Name: staniot

Certification: CE,RoHS

Choice: yes

Compatible: Staniot Home Security System

Easy installation: It fits on all types of doors and windows

Feature 1: Door open alarm

Feature 2: Vibration detection

Feature 3: SOS button

Hign-concerned Chemical: None

Model Number: DS050

Origin: Mainland China

Smart home platform: Tuya

Wireless parameters: 433MHz, eV1527

Wireless transmission distance: About 100m (Open area)

semi_Choice: yes

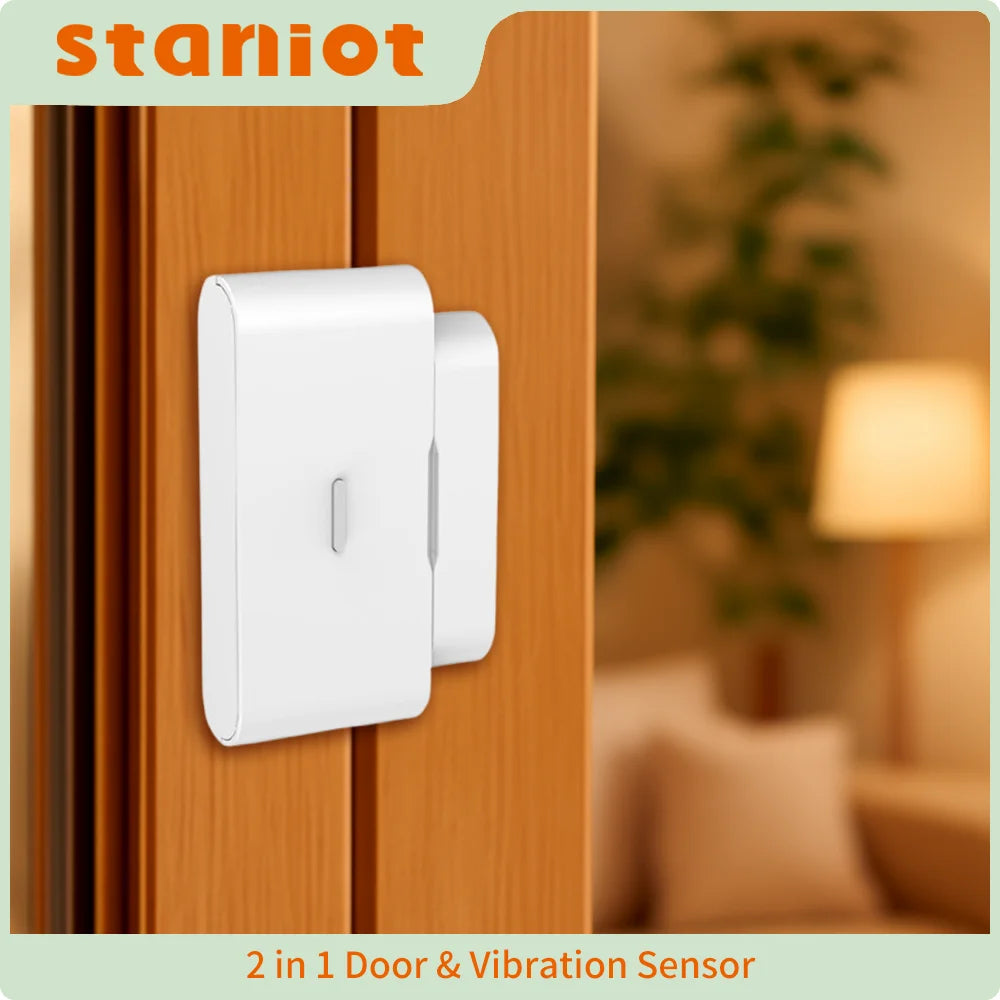

2 in 1 Vibration & Door Window Sensor

Notice:

1. It needs to work with alarm panel together, can’t work alone.



1） Radio frequency：433 MHz

2） Encoder IC：eV1527



3 Types of Triggering Methods



1.Door open alarm                       2. Vibration Detection                  3. SOS button

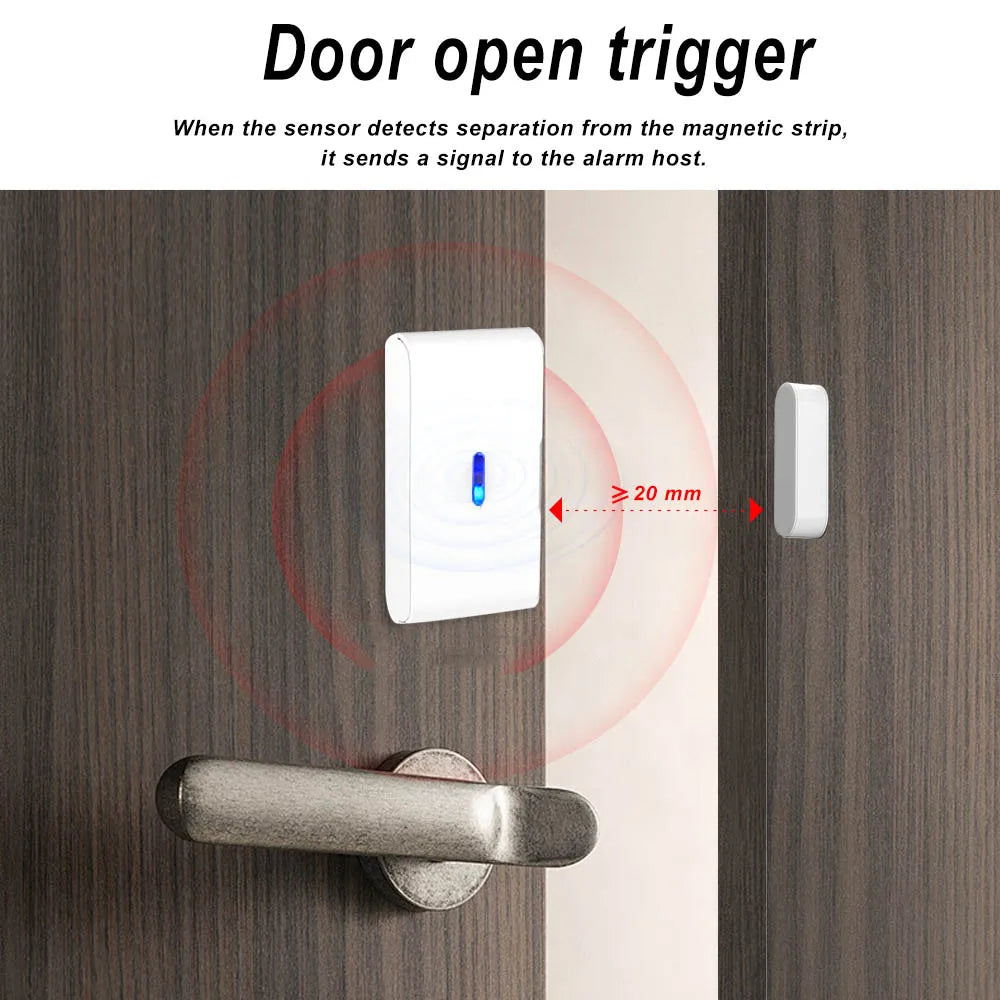

Door open trigger


When the sensor detects separation from the magnetic strip, it sends a signal to the alarm host.



Vibration trigger


When the sensor detects vibration or window/door breakageit sends a signal to the alarm host.

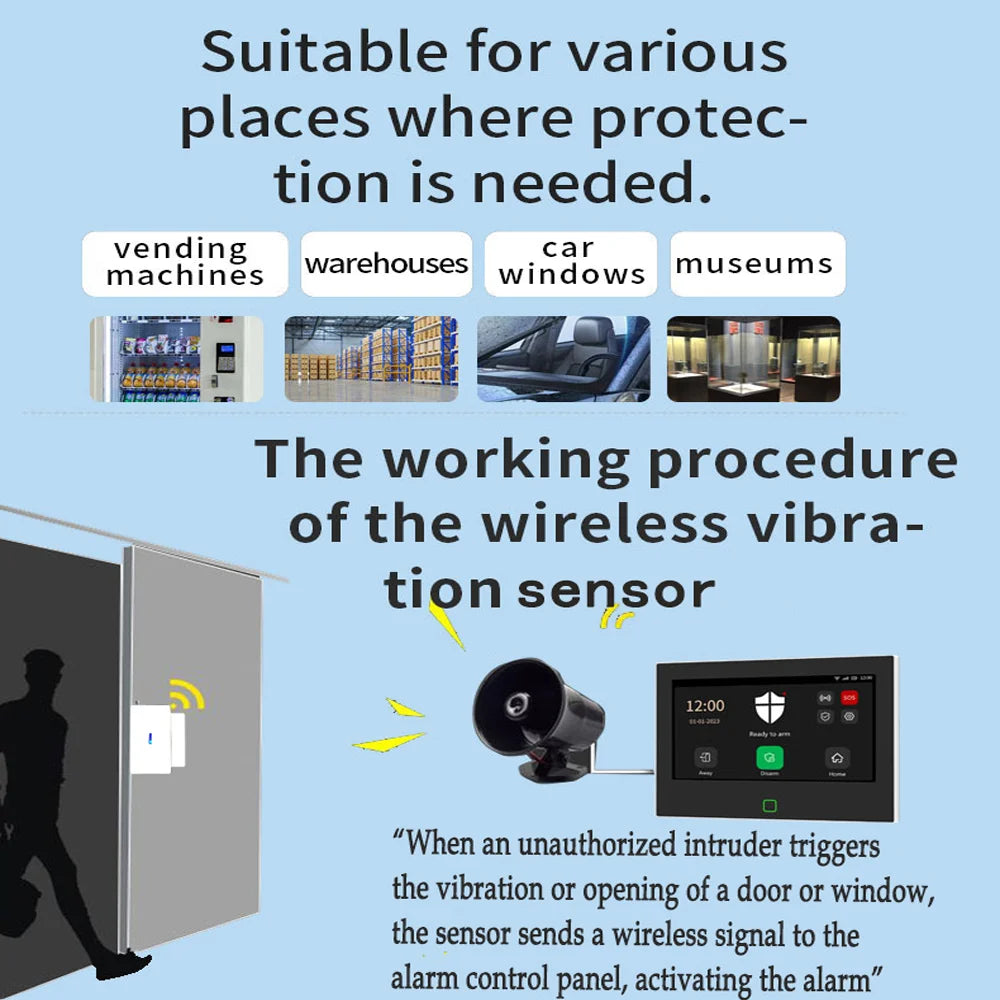

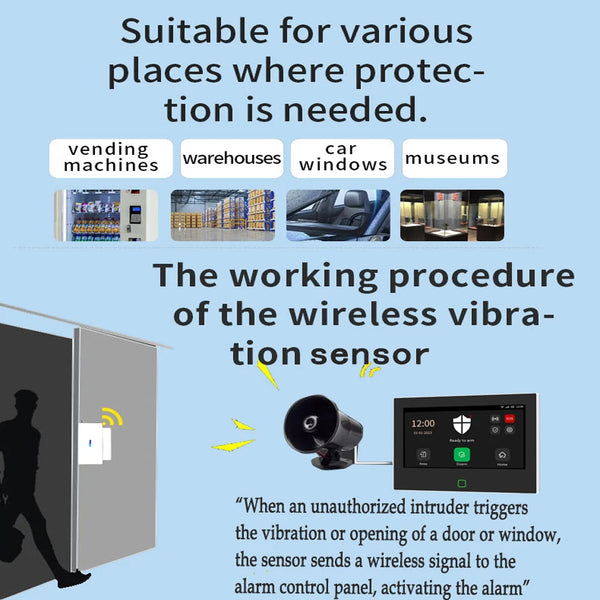

Suitable for all occasions


Suitable for a variety of places that need to be protected from being touched, such as vending machines, warehouses, car windows, and museums.




It needs to work with alarm panel together, can’t work alone.


When the glass receives an external intrusion, the alarm panel will receive the information and issue an alarm.

At the same time, the mobile APP is connected to the alarm panel and can also receive information reminders.




Hidden SOS button integrated with LED light


User can add the SOS button signal to alarm panel in advance (please change the zone type to emergency zone). If they are in danger, they can press this hidden button for SOS help.




Application


Windows, safes, glass doors, bedside table.





1.Wireless signal frequency and protocol:433.92MHz/1527

2.Wireless transmission distance：≥100 meters outdoor in open space

3.Power supply:1*3V CR2032 button battery




1.The sensor not only accurately monitors vibrations or glass breakage on doors and windows, but also monitors unauthorized opeing of doors and windows. Once triggered, the sensor sends a 433MHz wireless signal to the alarm host, which then activates the alarm. It must be useed with a 433MHz alarm host or Wi-Fi gateway and cannot operate independently.


2.lt supports 5 levels of vibration sensitivity adjustment,minimizing false alarms caused by irrelevant vibrations such as wind or noise.







The steps to adjust the vibration sensor are as follows:


1. Press and hold the setting button for 5 seconds. After the red and blue lights start flashing, release the setting button. (The number of flashes represents the current sensitivity level of the detector)

2. Press the setting button again to enter the next sensitivity level. At the same time, the red and blue lights will flash a corresponding number of times to indicate the current sensitivity level. Similarly, the product supports up to 5 levels of sensitivity adjustment.

Level 1: Trigger by slight vibration (default level)

Level 2: Trigger by knocking, opening the window will not trigger

Level 3: Trigger by strong knocking at a long distance

Level 4: Trigger by strong knocking at a close distance

Level 5: Trigger by gravity knocking at a close distance


SPECIFICATIONS

Brand Name: staniot

Certification: CE,RoHS

Choice: yes

Compatible: Staniot Home Security System

Easy installation: It fits on all types of doors and windows

Feature 1: Door open alarm

Feature 2: Vibration detection

Feature 3: SOS button

Hign-concerned Chemical: None

Model Number: DS050

Origin: Mainland China

Smart home platform: Tuya

Wireless parameters: 433MHz, eV1527

Wireless transmission distance: About 100m (Open area)

semi_Choice: yes


2 in 1 Vibration & Door Window Sensor

Notice:

1. It needs to work with alarm panel together, can’t work alone.



1） Radio frequency：433 MHz

2） Encoder IC：eV1527



3 Types of Triggering Methods



1.Door open alarm                       2. Vibration Detection                  3. SOS button


Door open trigger


When the sensor detects separation from the magnetic strip, it sends a signal to the alarm host.



Vibration trigger


When the sensor detects vibration or window/door breakageit sends a signal to the alarm host.


Suitable for all occasions


Suitable for a variety of places that need to be protected from being touched, such as vending machines, warehouses, car windows, and museums.




It needs to work with alarm panel together, can’t work alone.


When the glass receives an external intrusion, the alarm panel will receive the information and issue an alarm.

At the same time, the mobile APP is connected to the alarm panel and can also receive information reminders.




Hidden SOS button integrated with LED light


User can add the SOS button signal to alarm panel in advance (please change the zone type to emergency zone). If they are in danger, they can press this hidden button for SOS help.




Application


Windows, safes, glass doors, bedside table.





1.Wireless signal frequency and protocol:433.92MHz/1527

2.Wireless transmission distance：≥100 meters outdoor in open space

3.Power supply:1*3V CR2032 button battery




1.The sensor not only accurately monitors vibrations or glass breakage on doors and windows, but also monitors unauthorized opeing of doors and windows. Once triggered, the sensor sends a 433MHz wireless signal to the alarm host, which then activates the alarm. It must be useed with a 433MHz alarm host or Wi-Fi gateway and cannot operate independently.


2.lt supports 5 levels of vibration sensitivity adjustment,minimizing false alarms caused by irrelevant vibrations such as wind or noise.







The steps to adjust the vibration sensor are as follows:


1. Press and hold the setting button for 5 seconds. After the red and blue lights start flashing, release the setting button. (The number of flashes represents the current sensitivity level of the detector)

2. Press the setting button again to enter the next sensitivity level. At the same time, the red and blue lights will flash a corresponding number of times to indicate the current sensitivity level. Similarly, the product supports up to 5 levels of sensitivity adjustment.

Level 1: Trigger by slight vibration (default level)

Level 2: Trigger by knocking, opening the window will not trigger

Level 3: Trigger by strong knocking at a long distance

Level 4: Trigger by strong knocking at a close distance

Level 5: Trigger by gravity knocking at a close distance
