SPECIFICATIONS

Alarm Type: The Alarm,Apps Control

Arming Type: Password Keyboard

Brand Name: CPVan

Certification: CE,RoHS

Choice: yes

Communication Interface: Wireless

Display: Yes

Feature: Home alarm system

Feature 1: 7 inch 1024X600px HD Screen

Feature 10: OTA Online Upgrade

Feature 11: USB port wired from the rear

Feature 12: Support 10 languages

Feature 13: Support Set 5 Alarm Phone Numbers

Feature 14: Tuya, Smart Life APP

Feature 15: Smart home system

Feature 2: Built-in 5000mAH lithium battery

Feature 3: Built-in Louder siren 115db

Feature 4: IPS Full-Color display

Feature 5: Type-C power interface

Feature 6: Support 8 wired zones

Feature 8: Anti-fingerprint

Feature 9: Compatible with Alexa and Google Assistant

Hign-concerned Chemical: None

Kit Configuration: Door/Window Sensor

Model Number: CP10 Pro

Origin: Mainland China

Output Number: 150

Password Keyboard: Yes

Power: DC12V 1A

Size: 183mm*135mm*18mm

Smart home platform: Tuya

Video Interface: Yes

Zone Number: 150

semi_Choice: yes

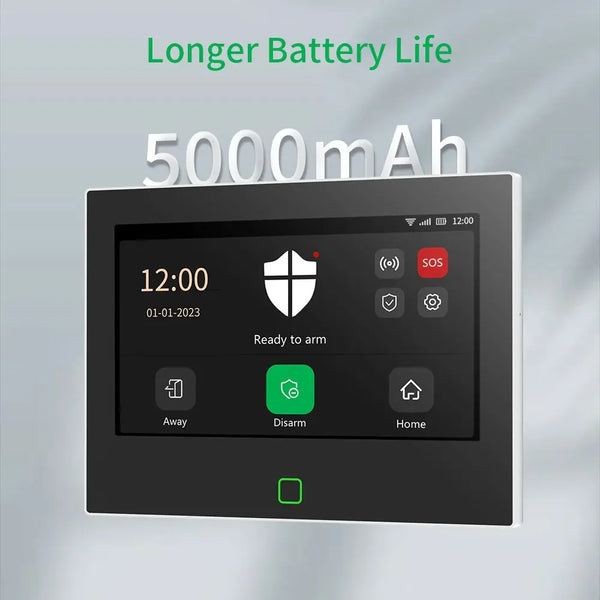

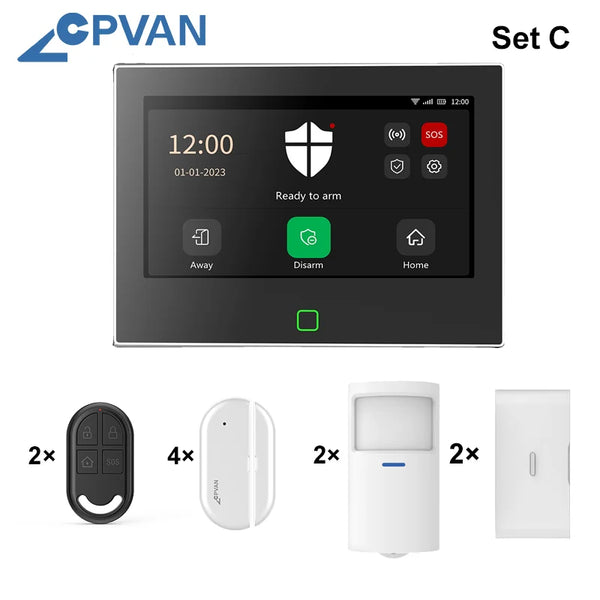

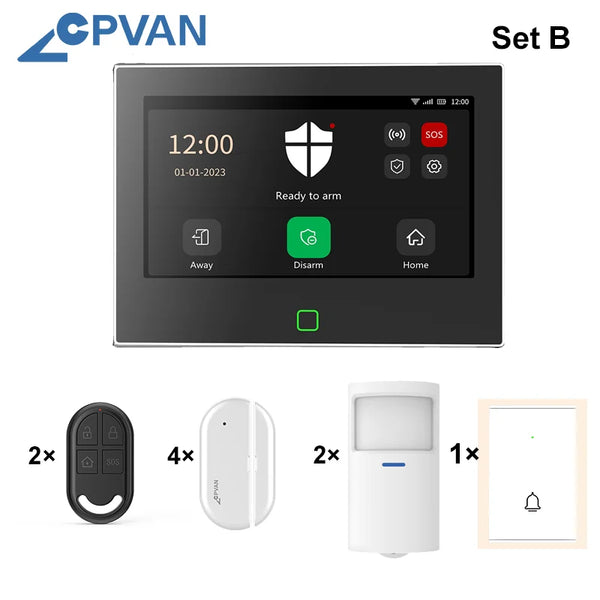

This 7-inch alarm mainframe features a 1024X600PX HD IPS screen and a built-in 5000mAH lithium battery. Built-in louder siren and buzzer up to 120dB. New 12V/1A, Typc-5V/2A charging ports. 8 wired sensing zones for homes with pre-installed recessed wiring. It also connects all accessories to the app (Tuya/Smart Life APP), you can know if your home is intruder anytime, anywhere, you can better protect you and your family, as well as your private property security!

This product is a WIFI+2G/4G version

Built-in powerful 5000mAh battery to maintain a constant connection between the Alarm host and accessories to protect your home.

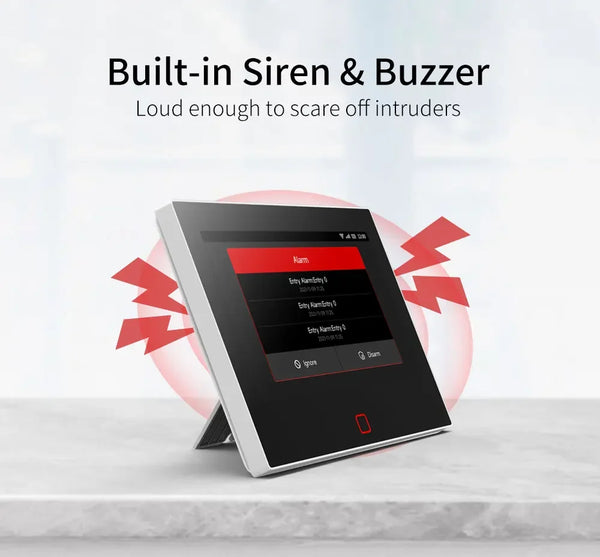

Built-in alarm and buzzer

Built-in 115dB siren and buzzer for loud, penetrating sound to scare off intruders

APP Push Notification

When there is an intruder in your home, the alarm will sound and your mobile phone will receive APP push notification immediately.

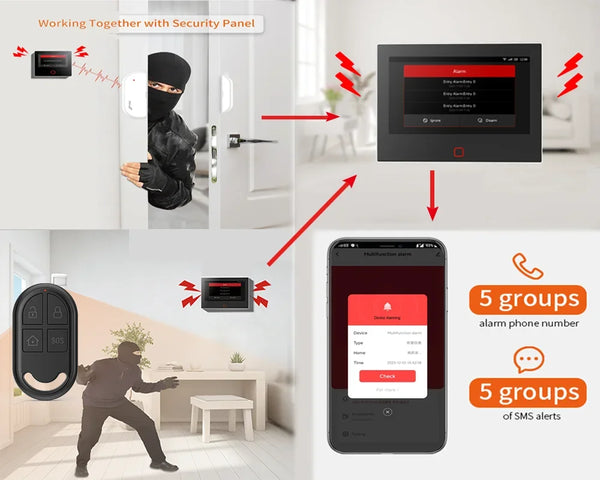

Support for setting 5 alarm phone numbers

1. You can set five phone numbers on the alarm host.

2. When an intruder enters your home, the anti-theft host will automatically send SMS to these five phone numbers. At the same time, it will call these phone numbers one by one.

Three ways to isarm and Away

APP Remote Disarm/Away: After connecting the alarm host to the mobile phone APP, the mobile phone can remotely control the host to disarm/Away and view the door and window opening/closing in real time. In addition, accessory name can be modified on APP

Alarm host disarm/Away: when the host alarm, you need to enter the password before disarming, you can know that there is an intruder in your home in time.

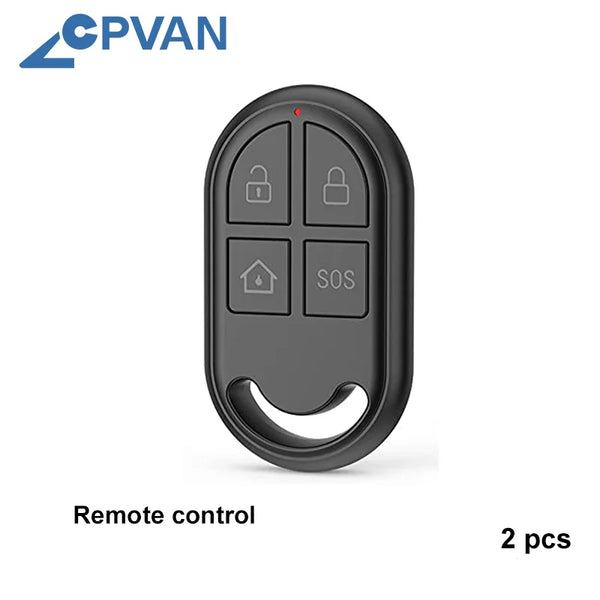

Remote control disarm/Away: one key to Away/disarm, which can be convenient for children and the elderly.

Compatible with Alexa and Google Assistant

You can arm and disarm the security system with your voice. Just set it up in the APP in advance and bind it with your Alexa or Google device to experience it.

*Notice: The PIN code is needed when disarming the device, it is preset on the Alexa/ Google APP.

Anti-fingerprint Touch Screen

Featuring an anti-fingerprint screen, intuitive touch controls, and one-button protection, you can keep your home safe with ease.

7-inch IPS Full-color Display

The new 7-inch display gives you a clear visual experience and a sensitive touchscreen.

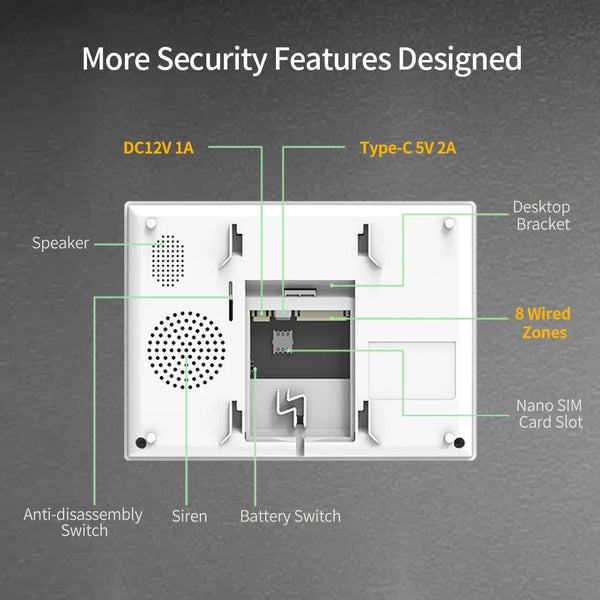

Added More Security Features

Notice:

1. DC 12V/1A and Type-C 5V/2A charging ports cannot be connected at the same time.

2. DC 12V/1A port and 8 Wired Sensors suitable for families with pre-installed embedded lines.

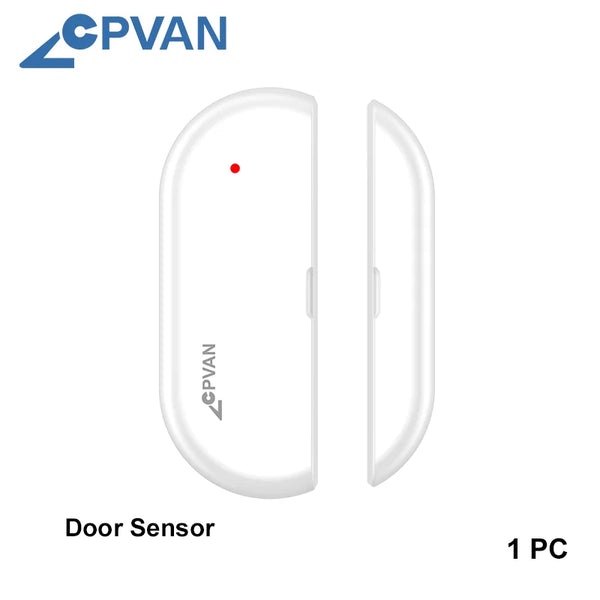

1. This door&window sensor can be used with all the alarm hosts in our store!

2, product parameters:

Radio Frequency:433 MHz

3. The alarm host that meet these two product parameters can be used with our door sensor.

For example:

* Tuya version of the alarm host in our store: CP2W/CP8/CP10

4. This door/window sensor cannot be used alone. It must be used together with the alarm host.

Product Features

1,Power supply: DC 12V (button battery *1)

2,Standby current: <8uA

3,Alarm current: <15mA

4,Transmission distance: <80m (open area)

5,Wireless frequency: 433Mhz

6,Working temperature: -10~55℃

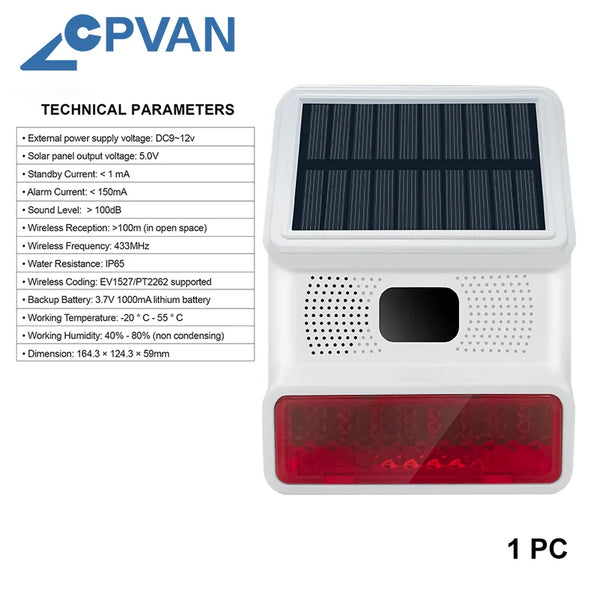

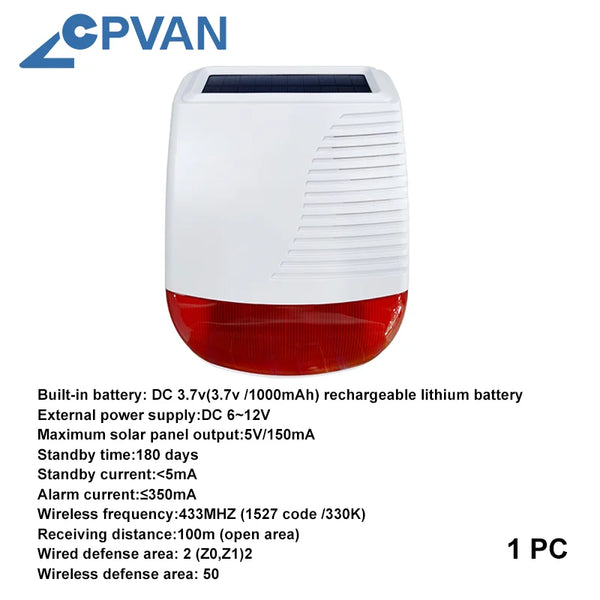

The outdoor solar siren is a detector that uses solar energy to power the system. Signal is transmitted by wireless or by wire. with wireless power and wireless signal, it improves the installation flexibility of the system. This detector can build multiple type of wireless alarms to scare illegal intruders off.

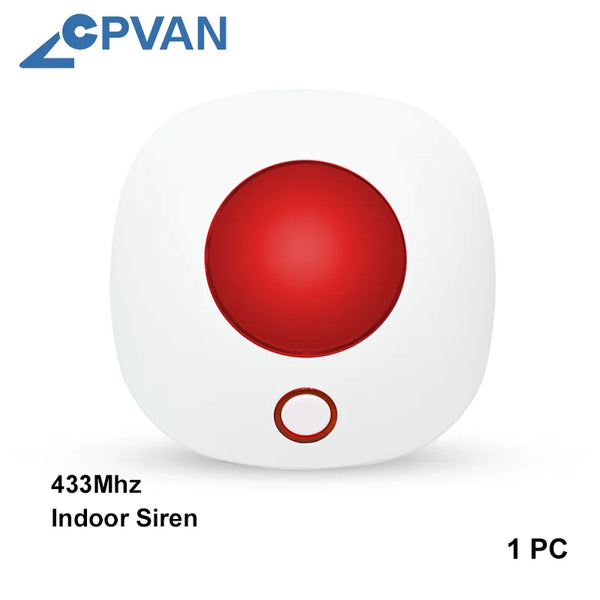

Indoor Horn Siren 433MHz Wireless Flashing Strobe Siren:
Product Features:

■ Small size with unique design

■ Alarm with high decibel and strobe

■ Up to 50 wireless detectors and remote control can be paired.

■ Built-in lithium battery, standby for more than 8 hours

■ Wide voltage design (AC 100～240V)

1. Power Input:AC 100-240V, 50/60Hz

2. Static Current:＜10mA

3. Alarm Current:＜200mA

4. Internal Siren Volume:90 dB

5. Supported Accessories:50 pcs

6. Built-in lithium Battery:3.7V 500mAh

7. Radio Frequency:433 MHz

8. Housing Material:ABS plastic

9. Operating condition:Temperature -10℃～+50℃

10. Relative humidity:≤ 80% (non-condensing)

11. Wireless Receiving Distance:≤120m

Specification:

APP: Tuya, Smart Life

1.Resolution:1080P

2.Sensor Resolution:SC1346,1/4" CMOS

3.Lens:3.6MM.

4.View angle:Horizontal Angle75°; Diagonal Angle 105º

5.Pan-tilt:Rotates Horizontal:355° Vertical:90°.

6.LED quantity:4pcs white LED + 4pcs Infrared LED.

7.Connection: 2.4G WIFI

8.Network:WIFI wireless transmission (support TCP/IP,RTSP,ONVIF wireless protocol).

9.Night vision: 10

10.White Led can be remote control via APP:①Turn ON ②Turn OFF ③ Auto(In automatic mode, the infrared light will be turned ON after the IR-cut switch to night vision automatically , it can intelligently detected human body, and Turn ON/OFF the White light intelligently ).

11.Audio:Built-in microphone and speaker, support two-way audio and real-time transmission,ADPCM audio compression standard, self-adapt to code stream.

12.Alarm:Motion detection and Alarm push .

13.TF Card(Max 128G);Cloud storage /Cloud disk (optional).

Application

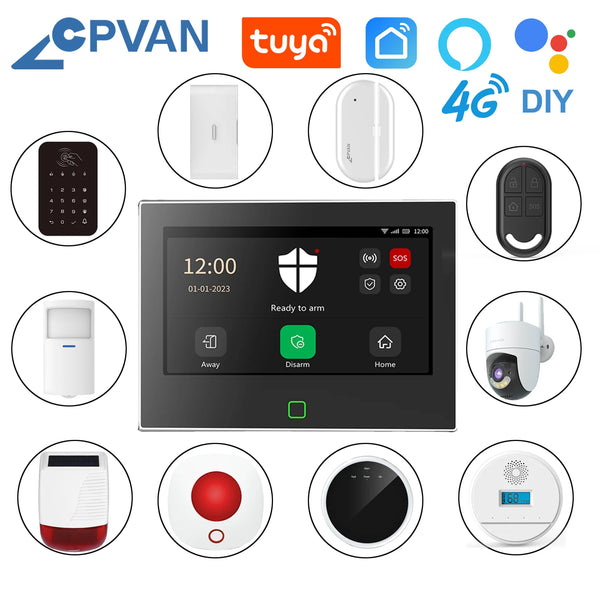

CPVAN Tuya Smart Home Alarm System WiFi 4G 7” Panel DIY Security Kit CPVAN Tuya Smart Home Alarm System WiFi 4G 7” Panel DIY Security Kit
